Author Topic: Speedo needle bounces when...  (Read 3013 times)
stopintime
Hero Member
*****
Offline Offline

Posts: 8911


S2R 800 '07


« on: June 17, 2021, 11:48:39 AM »

Stable some of the time and unstable the rest.

It typically goes from stable, let's say 80 km/h, and then for a second up to 100/110 or 120. Again and again.


Done some testing today.
- battery terminals voltage: bike off 12.8v / cranking ~9v / idle just after start 13v / idle after a minute 14v / 4.000 revs 14v / 5.000 revs 14v
- no wires or connectors look burnt
- regulator seems to be as warm as usual (yes, it's 13 years and 205.000 km old)

- maybe the most important (?) finding is that when this happens, I can pull the clutch and let it roll at idle and the needle will be stable again.
- it's stable when I'm running at 4.000 revs or less. Starts it's funny business over 4.500 revs
- I tried revving at 5.000 standing still. No needle movement.

 Hmmm....  Huh?
Logged

237,000 km/sixteen years - loving it
rule62
Hero Member
*****
Offline Offline

Posts: 675



« Reply #1 on: June 17, 2021, 04:53:06 PM »

Just a guess... The resting and cranking voltage seem a little low. Perhaps, when running, there's some odd voltage fluctuation happening which causes the speedo to get wonky. When is the last time you replaced the battery?

IME with another Italian bike (Aprilia Dorsoduro) batteries being near the end of their life caused all sorts of mystery gremlins. Perhaps give a new battery a go and see if it solves the problem.
Logged
Duck-Stew
Local Moderator
Hero Member
*****
Offline Offline

Posts: 9484


« Reply #2 on: June 17, 2021, 09:18:41 PM »

The speedo gets its signal from the Hall effect switch (duh).  Perhaps that has an issue with shielding or grounding?

Very odd issue…
Logged

Bike-less Portuguese immigrant enjoying life.
stopintime
Hero Member
*****
Offline Offline

Posts: 8911


S2R 800 '07


« Reply #3 on: June 18, 2021, 01:01:49 AM »

The battery is 5-6-7 years old. First time that has happened. I usually kill them by leaving the bike with alarm on during late season months. This one has been brought back to life a couple of times and seems strong (or maybe not....)

The poor 'Hall effect switch' is old and not ideally positioned. I'm not sure it's ever been taken off, cleaned or anything. I could start there...  I can't stop thinking though, that if it fails it would be bouncing down...

Logged

237,000 km/sixteen years - loving it
ungeheuer
ɹǝʌO d∩ uıɐןɐɹʇsn∀
Local Moderator
Post Whore
*****
Offline Offline

Posts: 20602


Often wrong. Never in doubt.


WWW
« Reply #4 on: June 18, 2021, 02:24:04 AM »

Reverting to Italian form.   This was normal behaviour for the Veglia speedo on my Morini ...  all you knew was that you were moving at some velocity +/- 30km/h.

Sorry zero help.
Logged

Ducati 1100S Monster Ducati 1260ST Multistrada + Moto Guzzi Griso 1200SE


Previously: Ducati1200SMultistradaDucatiMonster696DucatiSD900MotoMorini31/2
Howie
Post Whore
******
Offline Offline

Posts: 16807



« Reply #5 on: June 18, 2021, 03:19:23 AM »

You do need a battery if it is fully charged and drops to 9 volts while cranking.  Not your speedo problem though.  Do pursue the sensor and wiring first.
Logged
Charlie98
Marveling at my
Hero Member
*****
Offline Offline

Posts: 671


McKinney, TX


« Reply #6 on: June 18, 2021, 04:06:49 AM »

The battery is 5-6-7 years old. First time that has happened.



Definitely new battery time.  You might be surprised... a new battery might fix some problems you don't realize you had...  Wink
Logged

Dennis

2013 M796 ABS
1993 XR650L (the Torque-a-Saurus)

Wherever you go, there you are...
stopintime
Hero Member
*****
Offline Offline

Posts: 8911


S2R 800 '07


« Reply #7 on: June 18, 2021, 06:25:59 AM »

So, I bought a swingarm years ago. It included all the stuff the owner wouldn't be bothered taking off.

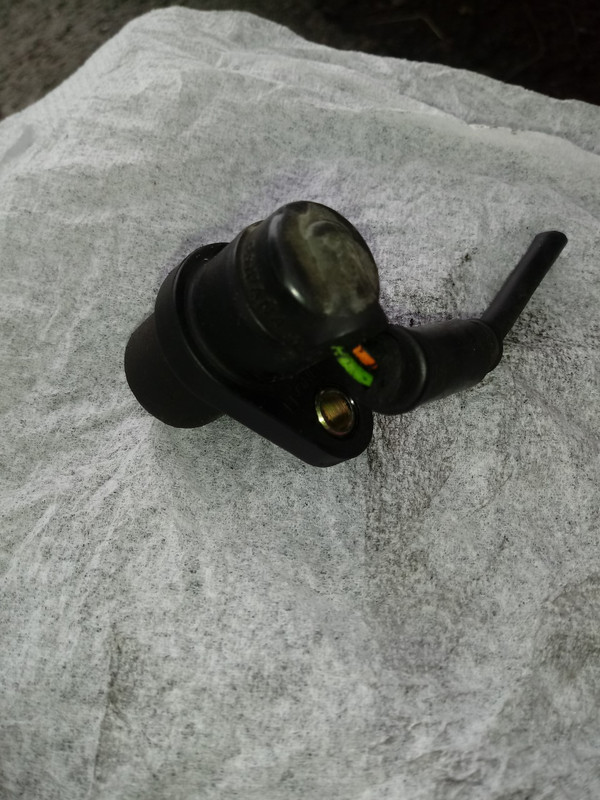

Fresh sensor  waytogo

The rubber boot/sleeve was torn.

If it stays dry I'll test it tonight. Good methodical work  Cool I'll get an answer about the sensor. The battery will be next - if that's what fixes it, we'll know less than if it's the more obvious sensor fail, but more than nothing

Logged

237,000 km/sixteen years - loving it
Howie
Post Whore
******
Offline Offline

Posts: 16807



« Reply #8 on: June 18, 2021, 07:00:03 AM »

Charlie98 made a good point.  As long as you have 12 volts the sensor will be happy, but your dash, maybe not.  Weak batteries play havoc on electronics.
Logged
stopintime
Hero Member
*****
Offline Offline

Posts: 8911


S2R 800 '07


« Reply #9 on: June 18, 2021, 12:35:06 PM »

Rock steady   waytogo
Thanks all!    Except Ungeheuer   Grin
« Last Edit: June 18, 2021, 12:38:11 PM by stopintime » Logged

237,000 km/sixteen years - loving it
ungeheuer
ɹǝʌO d∩ uıɐןɐɹʇsn∀
Local Moderator
Post Whore
*****
Offline Offline

Posts: 20602


Often wrong. Never in doubt.


WWW
« Reply #10 on: June 18, 2021, 12:49:21 PM »

Glad we could help  Cheesy
Logged

Ducati 1100S Monster Ducati 1260ST Multistrada + Moto Guzzi Griso 1200SE


Previously: Ducati1200SMultistradaDucatiMonster696DucatiSD900MotoMorini31/2
stopintime
Hero Member
*****
Offline Offline

Posts: 8911


S2R 800 '07


« Reply #11 on: June 18, 2021, 12:56:29 PM »

Glad we could help  Cheesy

 chug
Logged

237,000 km/sixteen years - loving it
ungeheuer
ɹǝʌO d∩ uıɐןɐɹʇsn∀
Local Moderator
Post Whore
*****
Offline Offline

Posts: 20602


Often wrong. Never in doubt.


WWW
« Reply #12 on: June 18, 2021, 01:05:34 PM »

Sensor or battery?
Logged

Ducati 1100S Monster Ducati 1260ST Multistrada + Moto Guzzi Griso 1200SE


Previously: Ducati1200SMultistradaDucatiMonster696DucatiSD900MotoMorini31/2
ducpainter
The Often Hated
Flounder-Administrator
Post Whore
*****
Offline Offline

Posts: 78190


DILLIGAF


« Reply #13 on: June 18, 2021, 01:09:04 PM »

Sensor or battery?
Yup.
Logged

"Once you accept that a child on the autistic spectrum experiences the world in
 a completely different way than you, you will be open to understand how that
 perspective
    is even more amazing than yours."
    To realize the value of nine  months:
    Ask a mother who gave birth to a stillborn.
"Don't piss off old people The older we get, the less 'Life in Prison' is a deterrent.”


stopintime
Hero Member
*****
Offline Offline

Posts: 8911


S2R 800 '07


« Reply #14 on: June 18, 2021, 01:23:42 PM »

Sensor or battery?

Probably one of those...
Logged

237,000 km/sixteen years - loving it
