Wire Question
Pages: [
1
]
2
Go Down
« previous
next »
Print
Author
Topic: Wire Question (Read 2902 times)
Norcoastal
New Member
Offline
Posts: 38
Wire Question
«
on:
June 02, 2020, 04:30:29 PM »
Hey everyone, I’ve been restoring a 2000 750 for the past few months and I’m down to the wire harness.
When is disassembled the bike, I labeled everything on the harness. There were two wires that weren’t attached to anything therefore I had nothing to label them with.
One looks like a ground wire, it’s thick like a battery cable with a loop end on it. The other is a two pronged connector.
I put a probe on the thick wire and to my surprise, it’s a constant hot when the key is on. The two prong connector has one hot side when the key is on. Because it’s a thick wire so I have to assume that it carries a heavy load like a starter, but the starter solenoid has the two wires on it that are supposed to be there. One from the engine and the other to the positive on the battery.
Can anyone take a look at the below pictures and let me know if you know where they attach?
lowrider wallpaper
Logged
stopintime
Hero Member
Offline
Posts: 8929
S2R 800 '07
Re: Wire Question
«
Reply #1 on:
June 02, 2020, 04:49:09 PM »
Where do they come from?
Logged
237,000 km/sixteen years - loving it
Speeddog
West Valley Flatlander
Flounder-Administrator
Post Whore
Offline
Posts: 14813
RIP Nicky
Re: Wire Question
«
Reply #2 on:
June 02, 2020, 08:30:15 PM »
Difficult to judge scale from that pic, can you do another with a common item for scale?
Logged
- - - - - Valley Desmo Service - - - - -
Reseda, CA
(951) 640-8908
~~~ "We've rearranged the deck chairs, refilled the champagne glasses, and the band sounds great. This is fine." - Alberto Puig ~~~
greenmonster
Hero Member
Offline
Posts: 1283
Re: Wire Question
«
Reply #3 on:
June 03, 2020, 04:00:35 AM »
Do you have a battery ground to engine cable?
If not, the thick one cold be it.
The other do look like solenoid cable.
Logged
M900 -97
MTS 1100s -07
Duck-Stew
Local Moderator
Hero Member
Offline
Posts: 9493
Re: Wire Question
«
Reply #4 on:
June 03, 2020, 04:14:18 AM »
IZ_ picture, but I’ll take a stab:
Small rectangular connector is to the starter solenoid. This connector provides the low amperage power and ground to pull in the solenoid contact.
Large wire which goes hot when connected to the battery is the battery side of the solenoid. So, basically, you have to get under the battery box and mess with possibly the worst positioned oem solenoid ever.
Just a guess about the large wire. The small white-ish rectangular one I’m sure about.
Logged
Bike-less Portuguese immigrant enjoying life.
Pinion
Hero Member
Offline
Posts: 657
Re: Wire Question
«
Reply #5 on:
June 03, 2020, 12:17:38 PM »
Quote from: Duck-Stew on June 03, 2020, 04:14:18 AM
IZ_ picture, but I’ll take a stab:
Small rectangular connector is to the starter solenoid. This connector provides the low amperage power and ground to pull in the solenoid contact.
Large wire which goes hot when connected to the battery is the battery side of the solenoid. So, basically, you have to get under the battery box and mess with possibly the worst positioned oem solenoid ever.
Just a guess about the large wire. The small white-ish rectangular one I’m sure about.
I think your spot on
Logged
Will trade toilet paper for parts
Norcoastal
New Member
Offline
Posts: 38
Re: Wire Question
«
Reply #6 on:
June 03, 2020, 04:11:20 PM »
I think the solenoid plug makes sense by everything I’m looking at, but I don’t remember seeing a plug on the solenoid to plug it into.
I’ll remove it this weekend and take a closer look. I agree that the black wire looks like a ground, but when I tested it, it has 12v coming out of it. I guess a ground has juice also as it completes the circuit.
Thanks everyone, wiring isn’t my strength, but I’m learning. I know just enough to get myself in trouble. The Power Probe has been helpful too.
I also just bought a Haynes Manual, that should help me also.
Thanks again!!!
Logged
Norcoastal
New Member
Offline
Posts: 38
Re: Wire Question
«
Reply #7 on:
June 03, 2020, 04:16:02 PM »
Quote from: Duck-Stew on June 03, 2020, 04:14:18 AM
IZ_ picture, but I’ll take a stab:
Small rectangular connector is to the starter solenoid. This connector provides the low amperage power and ground to pull in the solenoid contact.
Large wire which goes hot when connected to the battery is the battery side of the solenoid. So, basically, you have to get under the battery box and mess with possibly the worst positioned oem solenoid ever.
Just a guess about the large wire. The small white-ish rectangular one I’m sure about.
The solenoid already has two wires connected to it. One goes to the starter, and the other goes to a pigtail where the red positive wire is attached to the battery.
Doesn’t make sense that the large wire is a positive to the battery. But I have no idea what I’m taking about so don’t take whatever I say like I know what is right.
Logged
Norcoastal
New Member
Offline
Posts: 38
Re: Wire Question
«
Reply #8 on:
June 03, 2020, 04:22:37 PM »

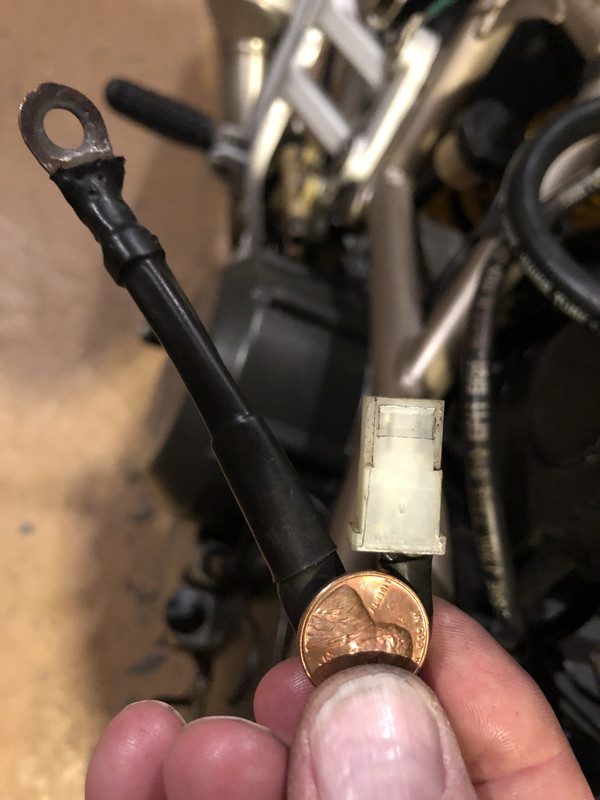

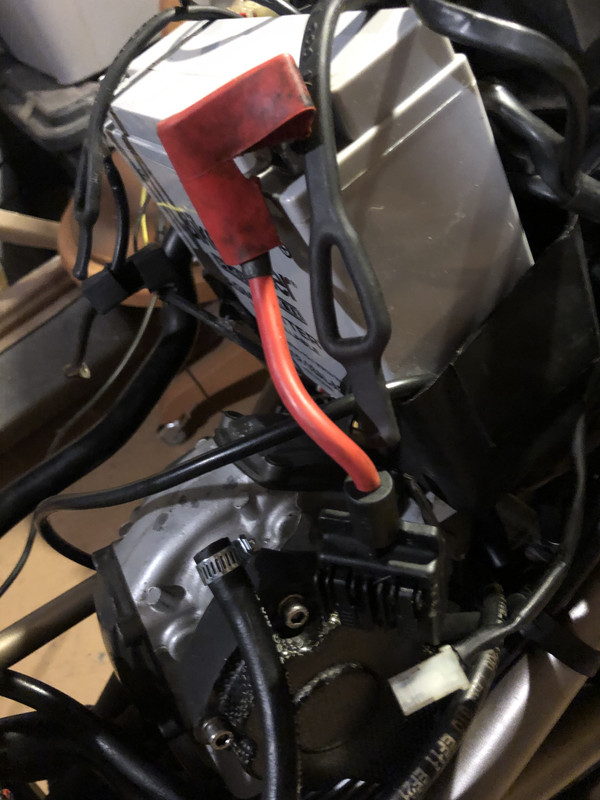

Here’s a picture to show scale. Also a picture that shows the positive connected to the junction that has a thick wire going to the solenoid.
Logged
Duck-Stew
Local Moderator
Hero Member
Offline
Posts: 9493
Re: Wire Question
«
Reply #9 on:
June 03, 2020, 07:07:52 PM »
If the other end of ghat large black wire plugs into the black plastic splitter on the positive cable the it is FOR SURE the hot (always hot) lead from the battery to the solenoid.
Also, if you have questions of this nature, is there anyone local to you who knows this sort of stuff who can lend a hand?!? This is, after all, the internet.
Logged
Bike-less Portuguese immigrant enjoying life.
Norcoastal
New Member
Offline
Posts: 38
Re: Wire Question
«
Reply #10 on:
June 04, 2020, 09:29:41 AM »
Thanks and you’re right, this is only the internet, but you be surprised how much info I learn on these forums!
Logged
Duck-Stew
Local Moderator
Hero Member
Offline
Posts: 9493
Re: Wire Question
«
Reply #11 on:
June 04, 2020, 12:33:59 PM »
Quote from: Norcoastal on June 04, 2020, 09:29:41 AM
Thanks and you’re right, this is only the internet, but you be surprised how much info I learn on these forums!
Agreed, but check things thoroughly before making final connections. I’m not going to come over and fix the bike, or be held liable. Let me know if I can help further.
Logged
Bike-less Portuguese immigrant enjoying life.
Speeddog
West Valley Flatlander
Flounder-Administrator
Post Whore
Offline
Posts: 14813
RIP Nicky
Re: Wire Question
«
Reply #12 on:
June 04, 2020, 01:23:59 PM »
This is a pic of a '98 M750 harness.
The harness ground connection that is bolted underneath the battery is shown in the pic, and is twist-tied to the ground wire that goes from battery negative to the same bolt location.
You can see the white 2-pin plug inserted into the starter solenoid.
Logged
